Air duct filter system
ELBARON®
The ELBARON® air duct filter is an electrostatic air filter system without a fan.
ELBARON® air duct filters are used for a centralized air filtration in production halls as well as in HVAC applications. If required, the air filter system can be expanded on a modular basis.
Application:
Oil mist, emulsion mist, smoke and other aerosols
For the separation of aerosols, oil and emulsion mist and smoke in HVAC applications.
Air flow rate
Air flow rate:
5.000 to 25.000 m³/h* without fan
*Depending on the filter configuration

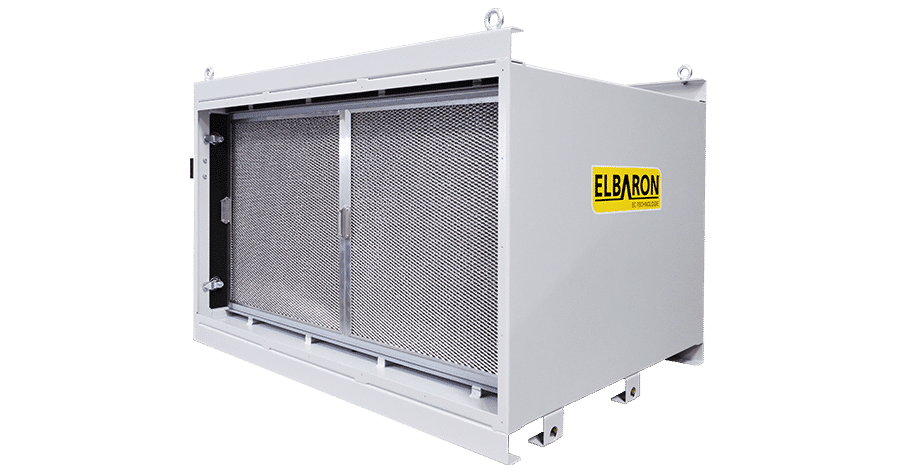

The ELBARON®– Air duct filter
Electrostatic air filtration system without fan for plant ventilation systems
The ELBARON® air duct filter series has been designed for central air filtration in production halls, as well as for HVAC applications. Based on our filter technology, which has proven itself over many years, this filter unit can be used as a central air filtration system in ventilation ducts.
The ELBARON® technology reliably filters aerosols, oil and emulsion mist, as well as smoke from the air. This way, the air in your production hall is cleaned effortlessly. Our air filter can also be integrated into central systems for machine extraction. ELBARON® filter units protect downstream heat exchangers or air conditioning units from premature contamination.
ELBARON® Air duct filter
The efficient solution for clean air in production halls
In industrial environments, the quality of the air is a decisive factor for the well-being and health of employees.
Air duct filters are central to ensuring a clean and safe working environment by removing harmful particles from the air circulating through ventilation systems and central extraction systems.
They are designed to effectively remove oil and emulsion mist, dust and smoke. These particles can not only impair machine performance, but also pose health risks to employees.
By using air duct filters, hazardous air pollution can be efficiently reduced.
ELBARON® Air duct filter devices | Technical data sheets and spare parts lists
ELBARON® Air filter system for oil mist, emulsion mist, smoke and other aerosols | available device types

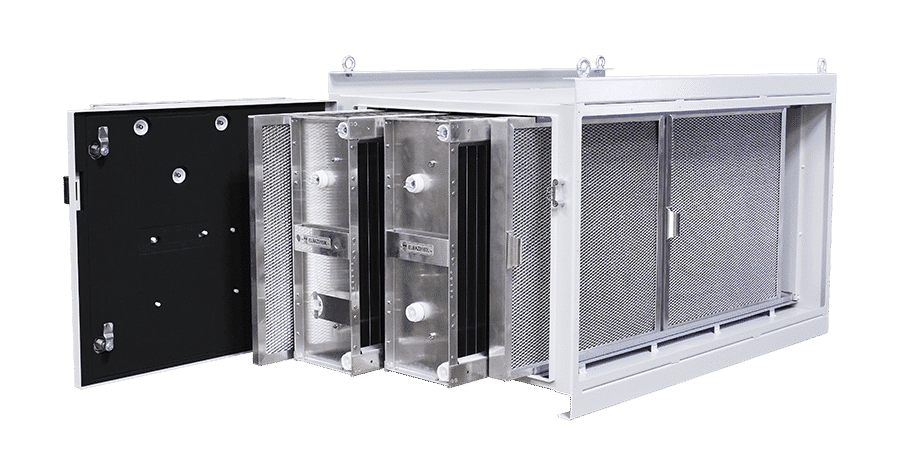

ELBARON® filter devices work according to the electrostatic filter principle. All filter cells are manufactured to high quality standards. You can also take advantage of our service for cleaning and maintaining your electrostatic filters. Regularly cleaned and maintained filter units can be used for many years. We will be happy to advise you.
RON5 SoGK
Application: Oil mist, emulsion mist, smoke, aerosols
Extraction capacity: 5000³/h
Filtering process: Electrostatic
Filter control: Digital / ISI-TRONIC
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L|W|H: 700 | 1020 | 595mm
Technical data sheet
Download
RON5 D1oGK | D2oGK
Application: Oil mist, emulsion mist, smoke, aerosols
Extraction capacity: 5000³/h
Filtering process: Electrostatic
Filter control: Digital / ISI-TRONIC
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L|W|H: 700 | 1020 | 595mm
Technical data sheet
Download
RON10 SoGK
Application: Oil mist, emulsion mist, smoke, aerosols
Extraction capacity: 10.000³/h
Filtering process: Electrostatic
Filter control: Digital / ISI-TRONIC
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L|W|H: 700 | 1020 | 1350 mm
Technical data sheet
Download
RON10 D1oGK | D2oGK
Application: Oil mist, emulsion mist, smoke, aerosols
Extraction capacity: 10.000³/h
Filtering process: Electrostatic
Filter control: Digital / ISI-TRONIC
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L|W|H: 700 | 1020 | 1350 mm
Technical data sheet
Download
RON15 SoGK
Application: Oil mist, emulsion mist, smoke, aerosols
Extraction capacity: 15.000³/h
Filtering process: Electrostatic
Filter control: Digital / ISI-TRONIC
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L|W|H:700 | 1020 | 1945 mm
Technical data sheet
Download
RON15 D1oGK | D2oGK
Application: Oil mist, emulsion mist, smoke, aerosols
Extraction capacity: 15.000³/h
Filtering process: Electrostatic
Filter control: Digital / ISI-TRONIC
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L|W|H: 700 | 1020 | 1945 mm
Technical data sheet
Download
RON20 SoGK
Application: Oil mist, emulsion mist, smoke, aerosols
Extraction capacity: 15.000³/h
Filtering process: Electrostatic
Filter control: Digital / ISI-TRONIC
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L|W|H: 700 | 1020 | 2540mm
Technical data sheet
Download
RON20 D1oGK | D2oGK
Application: Oil mist, emulsion mist, smoke, aerosols
Extraction capacity: 15.000³/h
Filtering process: Electrostatic
Filter control: Digital / ISI-TRONIC
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L|W|H: 700 | 1020 | 2540mm
Technical data sheet
Download
Your advantages at a glance
High separation efficiency
Large capacity
Modularly expandable
Easy maintenance
Low energy consumption
Robust construction
Also available as mirror image version
Low follow-up costs due to washable filter cells
Available as simplex (single-stage), duplex (two-stage or retrofittable)
Personal consultation
Do you have any questions about our air filter devices, need a spare part or are you interested in our service for air filter devices? Our friendly and competent office and field staff look forward to hearing from you.
You can reach us from Monday to Thursday from:
08.00 am - 5.00 pm. On Fridays we are available until 2.00 pm.
Phone: +49 (0) 26 83 97 94 0
kontakt@isi-luftfilter.de
Personal consultation
Do you have any questions about our air filter devices, need a spare part or are you interested in our service for air filter devices?
Our friendly and competent office and field staff look forward to hearing from you.
You can reach us from Monday to Thursday from:
08.00 am - 5.00 pm. On Fridays we are available until 2.00 pm.
Phone: +49 (0) 26 83 97 94 0
kontakt@isi-luftfilter.de
Filter monitoring and spare parts procurement made easy!
Take advantage of the ISI-TRONIC filter device control options
With ISI-TRONIC, you minimize machine downtimes and ensure the longevity of your ELBARON® air duct filter devices.
The contamination indicator ensures that you know in good time when a cleaning cycle is due or new filter media needs to be procured.
Sustainability our contribution to corporate environmental protection
All filter media are made from high-quality and durable materials.
Many filter units are washable and reusable!
Our washable filter media help you to protect the environment and significantly reduce the amount of waste. Washable filter media reduce your costs for replacing spare filters. Electrostatic filter cells have a service life of many years if cleaned regularly. We also offer you the appropriate maintenance and cleaning service.
Find out more about our other filter devices
We will be happy to advise you on the configuration and selection of a suitable air filter unit for your application.
You can rely on over 50 years of experience in industrial air pollution control.
We develop industrial air filter devices for a variety of applications. We place great value on proven functionality and digitalized control technology.
All air filter devices are equipped with a highly efficient EC fan. Energy savings of up to 60 % compared to conventional three-phase fans are realistically achievable.
