Electrostatic filter for machine tools
ELBARON®
The ELBARON® Air filtration system is one of the most powerful and solid filter units on the market.
The ELBARON® filter series was developed by us as a specialist in electrostatic filter solutions for the machining industry for the separation of oil, emulsion mist and smoke.
ELBARON® filter devices are in use all over the world and impress with:
- A strong filter performance
- Effectiveness
- Longevity
- Energy efficiency
- High-quality workmanship of all filter components
Modern machining tools in particular often operate at high speeds, with internally cooled tools and high fluid pressures. In these applications, machining is carried out with pure oil or a cooling lubricant with a high oil content. High cutting performance often results in smoke as well as mist. In this case only an electrostatic filter system can be used effectively and economically.
The ELBARON® E-RON series is also available with an optional H13 HEPA end filter for guaranteed separation values.

Application: Smoke, Oil mist, Emulsion mist and Aerosols
For filtering aerosols, oil mist, emulsion mist and smoke for ventilation systems.
Air flow rate:
Air flow rate: 350 to 3550m³/h*
*Depending on filter equipment.
The ELBARON®– Air filtration system
Electrostatic air filter devices | Highest energy efficiency | Maxium sustainability
The reliable performance of ELBARON® filter devices is enhanced by state-of-the-art technology that enables precise filtration even under extreme conditions.
As a result, electrostatic filters make a decisive contribution to compliance with legal regulations and to improving the working environment. By reducing harmful substances in the air, the filters not only protect employees, but also increase the efficiency of production processes. Companies can therefore not only reduce their operating costs, but also sustainably improve the well-being of their workforcen
ELBARON® E-RON
Electrostatic filters for large quantities of liquids
Our precisely designed electrostatic filter cells are coordinated with the rest of the technology so that they guarantee the best possible filter efficiency, service life and functional reliability.
This makes the ELBARON® series one of the most powerful and robust filter units on the market. As a further highlight of the successful series, the E-RON was developed, which separates large quantities of liquids effortlessly.
Depending on the application, you have the choice between a device with one or two filter cells, as a simplex or duplex version. Let our experts advise you!We will be happy to work with you to configure the perfect size, performance and filter configuration for your personal application.
The ELBARON® filter unit is optionally available with our digital ISI-TRONIC digital filter unit control system.
Innovation – electrostatic filter cells rethought!
Improve separation efficiency by 35% with our IONIC BOOSTER CELL. Can also be retrofitted!







ELBARON® Electrostatic air filter units | Technical data sheets and spare parts lists
ELBARON® Air filter system for oil mist, emulsion mist, smoke and other aerosols | available device types
ELBARON® filter devices work according to the electrostatic filter principle. All filter cells are manufactured to high quality standards. You can also take advantage of our service for cleaning and maintaining your electrostatic filters. Regularly cleaned and maintained filter units can be used for many years. We will be happy to advise you.

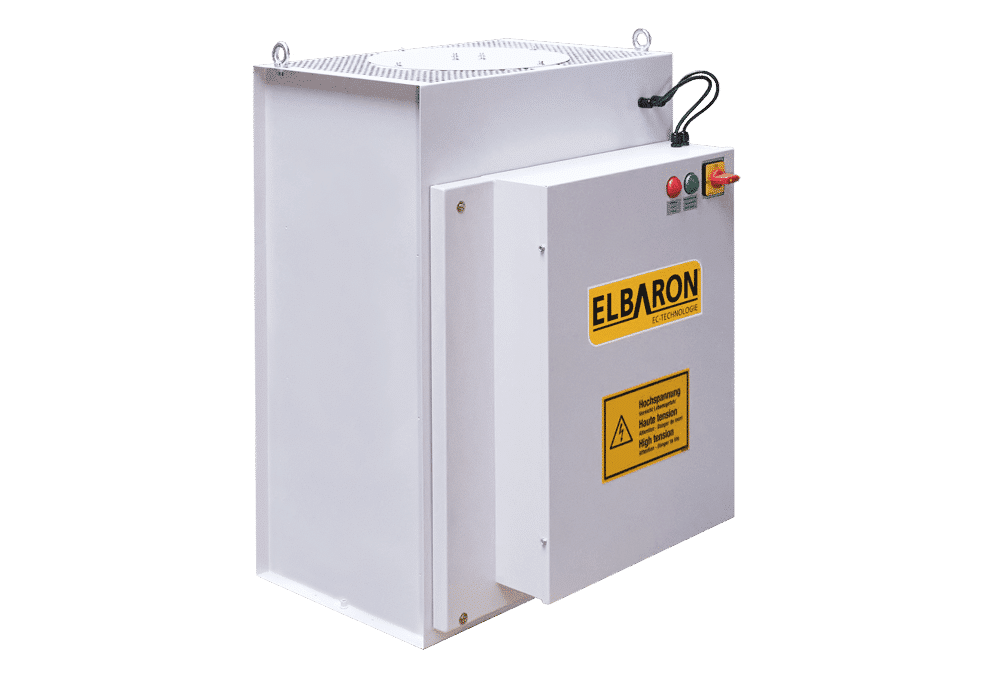

RON 60STR
Application: Oil mist, smoke
Extraction capacity: 350³/h
Filtering process: Electrostatic
Machine workspace size: small
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L | W | H: 329 | 374 | 510 mm
Technical data sheet
Download
Spare parts list
Download

RON 60D1TR | D2TR
Application: Oil mist, smoke
Extraction capacity: 350³/h
Filtering process: Electrostatic
Machine workspace size: small
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L | W | H: 329 | 374 | 703 mm
Technical data sheet
Download
Spare parts list
Download

RON 100STR
Application: Oil mist, smoke
Extraction capacity: 730³/h
Filtering process: Electrostatic
Machine workspace size: small
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L | W | H: 353 | 542 | 540 mm
Technical data sheet
Download
Spare parts list
Download

RON 100 D1TR | D2TR
Application: Oil mist, smoke
Extraction capacity: 730³/h
Filtering process: Electrostatic
Machine workspace size: small
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L | W | H: 353 | 542 | 726 mm
Technical data sheet
Download
Spare parts list
Download

E-RON 2 D1EC | D2EC
Application: Oil mist, Emulsion mist and smoke
Extraction capacity: 1150 – 1680 m²/h
Filtering process: Electrostatic
Machine workspace size: medium to large
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L | W | H: 755 | 345 | 595 mm
Technical data sheet
Download
Spare parts list
Download

E-RON 2 D1TR | D2TR
Application: Oil mist, Emulsion mist and smoke
Extraction capacity: 1150 – 1680 m²/h
Filtering process: Electrostatic
Machine workspace size: medium to large
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions L | W | H: 940 | 345 | 595 mm
Technical data sheet
Download
Spare parts list
Download

E-RON 4 SEC
Application: Oil mist, Emulsion mist and smoke
Extraction capacity: 1300 – 2080 m³/h
Filtering process: Electrostatic
Machine workspace size: large to very large
Operating voltage:
400 V | 50/60 Hz | 3 PH + N + PE
Dimensions L | W | H: 975 | 508 | 545 mm
Technical data sheet
Download
Spare parts list
Download

E-RON 4 D1TR | D2TR
Application: Oil mist, Emulsion mist and smoke
Extraction capacity: 1300 – 2080 m³/h
Filtering process: Electrostatic
Machine workspace size: large to very large
Operating voltage:
400 V | 50/60 Hz | 3 PH + N + PE
Dimensions L | W | H: 1160 | 508 | 545 mm
Technical data sheet
Download
Spare parts list
Download

E-RON 4 STR
Application: Oil mist, Emulsion mist and smoke
Extraction capacity: 1300 – 2080 m³/h
Filtering process: Electrostatic
Machine workspace size: large to very large
Operating voltage:
400 V | 50/60 Hz | 3 PH + N + PE
Dimensions L | W | H: 975 | 508 | 545 mm
Technical data sheet
Download
Spare parts list
Download

E-RON 4 D1EC | D2EC
:Application: Oil mist, Emulsion mist and smoke
Extraction capacity: 1300 – 2080 m³/h
Filtering process: Electrostatic
Machine workspace size: large to very large
Operating voltage:
400 V | 50/60 Hz | 3 PH + N + PE
Dimensions L | W | H: 1160 | 508 | 545 mm
Technical data sheet
Download
Spare parts list
Download

E-RON 5 D1TR | D2TR
Application: Oil mist, Emulsion mist and smoke
Extraction capacity: 3200 – 3550 m³/h
Filtering process: Electrostatic
Machine workspace size: very large
Operating voltage:
400 V | 50/60 Hz | 3 PH + N + PE
Dimensions L | W | H: 1283 | 1020 | 595 mm
Technical data sheet
Download
Spare parts list
Download

RON 5 STR
Application: Oil mist, Emulsion mist and smoke
Extraction capacity: 3200 – 3550 m³/h
Filtering process: Electrostatic
Machine workspace size: very large
Operating voltage:
400 V | 50/60 Hz | 3 PH + N + PE
Dimensions L | W | H: 1283 | 1020 | 595 mm
Technical data sheet
Download
Spare parts list
Download
Additional housing for the E-RON2 and E-RON4 models of the ELBARON® device series
The E-RON2 and E-RON4 models can be extended with an additional housing module
This can accommodate a HEPA filter and an activated carbon filter. With these additional filters, 99.95% of impurities and odors are filtered out of the ambient air.
Your advantages at a glance
ELBARON® air filters are available in 15 variants
ISI-TRONIC (optional)
Adjustable speed and air flow rate (optional)
Low follow-up costs due to washable filter elements
Available as simplex or duplex versions.
Electronically controlled EC fan as standard
Threefold pre-filtering optional in the E-RON series
Large range of mounting and connection accessories
Adjustable end filters optional in the E-RON series
Personal consultation
Do you have any questions about our air filter devices, need a spare part or are you interested in our service for air filter devices? Our friendly and competent office and field staff look forward to hearing from you.
You can reach us from Monday to Thursday from:
08.00 am - 5.00 pm. On Fridays we are available until 2.00 pm.
Phone: +49 (0) 26 83 97 94 0
kontakt@isi-luftfilter.de



Personal consultation
Do you have any questions about our air filter devices, need a spare part or are you interested in our service for air filter devices?
Our friendly and competent office and field staff look forward to hearing from you.
You can reach us from Monday to Thursday from:
08.00 am - 5.00 pm. On Fridays we are available until 2.00 pm.
Phone: +49 (0) 26 83 97 94 0
kontakt@isi-luftfilter.de
Filter monitoring and spare parts procurement made easy!
Benefit from the options of the ISI-TRONIC filter device control system
With ISI-TRONIC, you minimize downtimes and ensure the long service life of your TEBARON air filters.
The contamination indicator ensures that you know in good time when a cleaning cycle is due or new filter media needs to be procured.
The ISI-TRONIC filter unit control system is available as an option.
Sustainability our contribution to corporate environmental protection
All filter media are made from high-quality and durable materials.
Many filter units are washable and reusable!
Our washable filter media help you to protect the environment and significantly reduce the amount of waste. Washable filter media reduce your costs for replacing spare filters. Electrostatic filter cells have a service life of many years if cleaned regularly. We also offer you the appropriate maintenance and cleaning service.
Find out more about our other filter devices
We will be happy to advise you on the configuration and selection of a suitable air filter unit for your application.
You can rely on over 50 years of experience in industrial air pollution control.
We develop industrial air filter devices for a variety of applications. We place great value on proven functionality and digitalized control technology.
All air filter devices are equipped with a highly efficient EC fan. Energy savings of up to 60 % compared to conventional three-phase fans are realistically achievable.
