Emulsion mist filter
TEBARON
Efficient, compact and customizable
TEBARON emulsion mist filters are suitable for applications where emulsion is used as a cooling lubricant.
With compact dimensions and well thought-out functions, TEBARON emulsion mist separators are particularly suitable for machine tools with small and medium-sized machine workspaces.
In metalworking companies, the air can be polluted by emulsion mist and released aerosols. In this case, our TEBARON filter systems provide the perfect solution. Retrofitting a machine tool with a TEBARON air filter unit significantly improves the air quality.
The well-being of employees in the workplace and workplace safety are promoted.
Application: Emulsion mist
For the extraction of emulsion mist for small to medium-sized machine working areas.
Air flow rate:
Air flow rate 600/720 m³/h*
Depending on the filter equipment
The TEBARON– air filtration system
Highest energy efficiency | Maximum sustainability

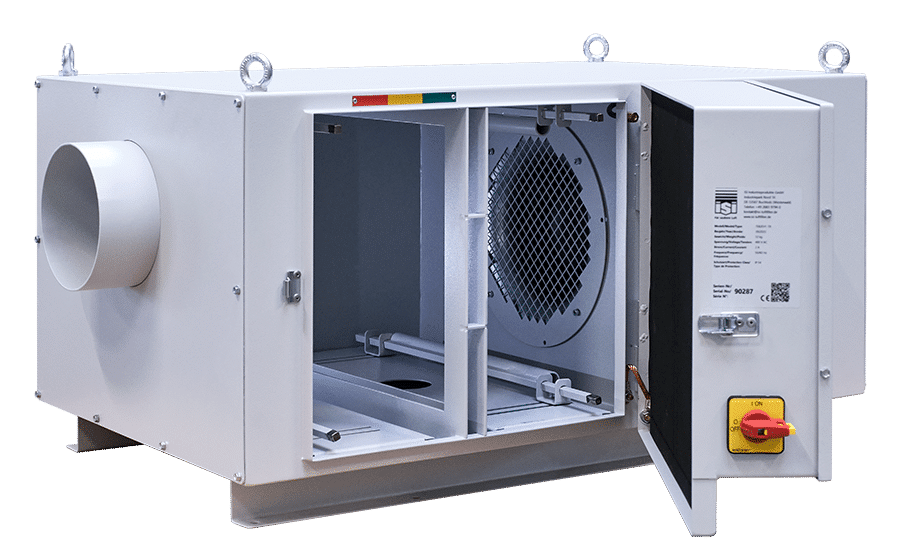

The TEBARON emulsion mist filters impress with their user-friendly operation. The air filter units are equipped with a highly efficient and economical EC fan as standard. This means that both the speed and the air flow rate can be individually adapted to the application.
Thanks to their compact design, TEBARON emulsion mist filters can be easily integrated into various machine setups without taking up valuable space.
Optionally, your TEBARON filter unit can also be equipped with our digital filter control ISI-TRONIC.
Features
Extraction capacity filter unit at spigot*: 600/720* m³/h
Total power consumption*: 0.42 kW
Operating voltage: 230 V, 50/60 Hz,1PH+N+PE
Noise level*: 67 db(A)
Dimensions L/W/H in mm: approx. L 800 / W 493 /H 415
Colour (light grey): RAL 7035**
Weight: 53 kg
* Depending on filter equipment
** Special voltage or special color on request
Filter configuration – adaptable to your application
Washable pre-filters reduce follow-up costs and protect the environment

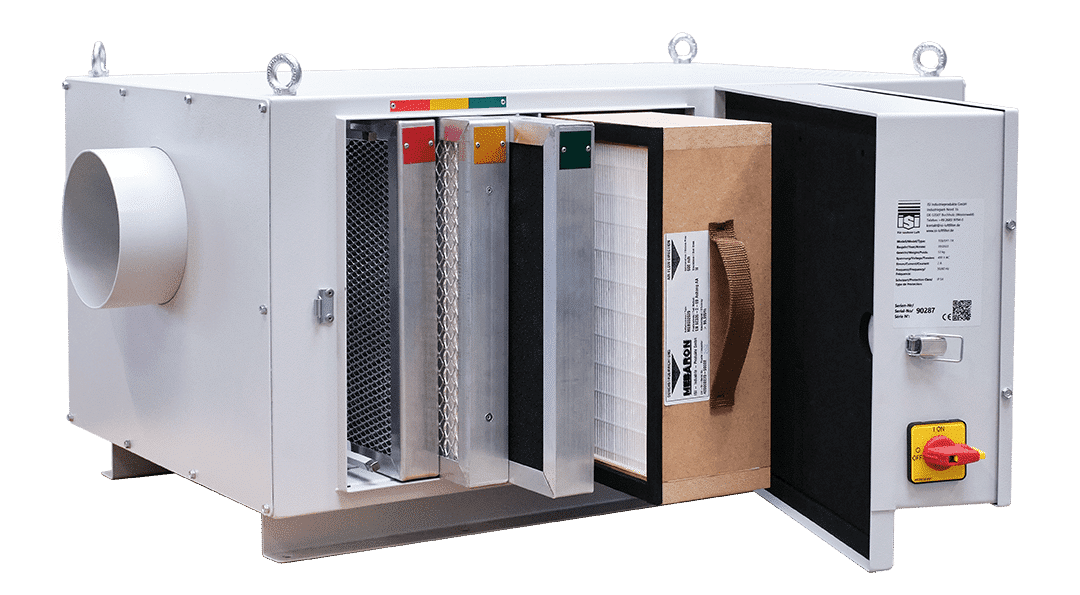

The standard, integrated, three-piece pre-filter package is completely washable. It is highly effective against solid and liquid aerosols of larger and medium particle diameters and protects as well as maximises the service life of the main filter. The main filter can be individually adapted to the application. As standard, we use a H13 HEPA filter here to realise collection efficiencies of 99.95% against particles as small as 0.3 μ.
Optionally, a Varifine or Varibase filter can be used as a final filter.
We will be happy to assist you in selecting the suitable filter media and adapt the air filter system to your requirements.
TEBARON Emulsion mist filter | Technical datea sheets ans spare part lists
TEBARON Emulsion mist filter – Available device options
The compact TEBARON emulsion mist filters operate using the mechanical filtration method. The extraction capacity is between 600 – 720m³/h.
On request, our TEBARON extraction solution for emulsion mist is also available with the ISI-TRONIC electronic filter unit control system.
TEBARON EH1-EC
Application: Emulsion mist
Suction power: 600-720 m³/h
Filtering process: Mechanical
Machine working area size: small to middle
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions: L | B | H 800 | 493 | 415 mm
Technical data sheet
Download
Spare parts list
Download
TEBARON EH1-TR
Application: Emulsion mist
Suction power: 600-720 m³/h
Filtering process: Mechanical
Machine working area size: small to middle
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions: L | B | H 800 | 493 | 415 mm
Technical data sheet
Download
Spare parts list
Download
TEBARON EH1-EC
Application: Emulsion mist
Suction power: 600-720 m³/h
Filtering process: Mechanical
Machine working area size: small to middle
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions: L | B | H 800 | 493 | 415 mm
Technical data sheet
Download
Spare parts list
Download
TEBARON EH1-TR
Application: Emulsion mist
Suction power: 600-720 m³/h
Filtering process: Mechanical
Machine working area size: small to middle
Operating voltage:
230 V | 50/60 Hz | 1 PH + N + PE
Dimensions: L | B | H 800 | 493 | 415 mm
Technical data sheet
Download
Spare parts list
Download
Personal consultation
Do you have any questions about our air filter devices, need a spare part or are you interested in our service for air filter devices? Our friendly and competent office and field staff look forward to hearing from you.
You can reach us from Monday to Thursday from:
08.00 am – 5.00 pm. On Fridays we are available until 2.00 pm.
Phone: +49 (0) 26 83 97 94 0
Your advantages at a glance
Compact dimensions
ISI-TRONIC optional
Flexibly adaptable to application
Washable pre-filter
Optimum service life
Adjustable speed or air output
Highly efficient EC fan as standard
Large range of mounting and connection accessories
H13 HEPA filter ensures separation rates of up to 99.95%
Personal consultation
Do you have any questions about our air filter devices, need a spare part or are you interested in our service for air filter devices?
Our friendly and competent office and field staff look forward to hearing from you.
You can reach us from Monday to Thursday from:
08.00 am – 5.00 pm. On Fridays we are available until 2.00 pm.
Phone: +49 (0) 26 83 97 94 0
kontakt@isi-luftfilter.de
Filter monitoring and spare parts procurement made easy!
Benefit from the options of the ISI-TRONIC filter device control system
With ISI-TRONIC, you minimize downtimes and ensure the long service life of your TEBARON air filters.
The contamination indicator ensures that you know in good time when a cleaning cycle is due or new filter media needs to be procured.
The ISI-TRONIC filter unit control system is available as an option.
Sustainability our contribution to corporate environmental protection
All filter media are made from high-quality and durable materials.
Many filter units are washable and reusable!

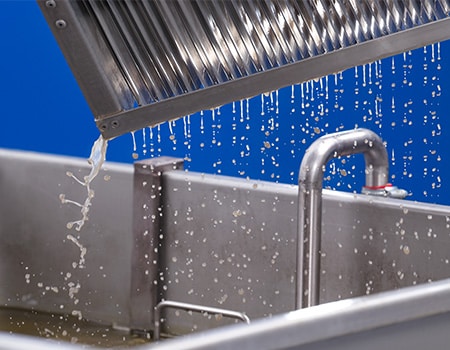

Our washable filter media help you to protect the environment and significantly reduce the amount of waste. Washable filter media reduce your costs for replacing spare filters. Electrostatic filter cells have a service life of many years if cleaned regularly. We also offer you the appropriate maintenance and cleaning service.
Find out more about our other filter devices
We will be happy to advise you on the configuration and selection of a suitable air filter unit for your application.
You can rely on over 50 years of experience in industrial air pollution control.
We develop industrial air filter devices for a variety of applications. We place great value on proven functionality and digitalized control technology.
All air filter devices are equipped with a highly efficient EC fan. Energy savings of up to 60 % compared to conventional three-phase fans are realistically achievable.
